miniVNA Pro 2

Description

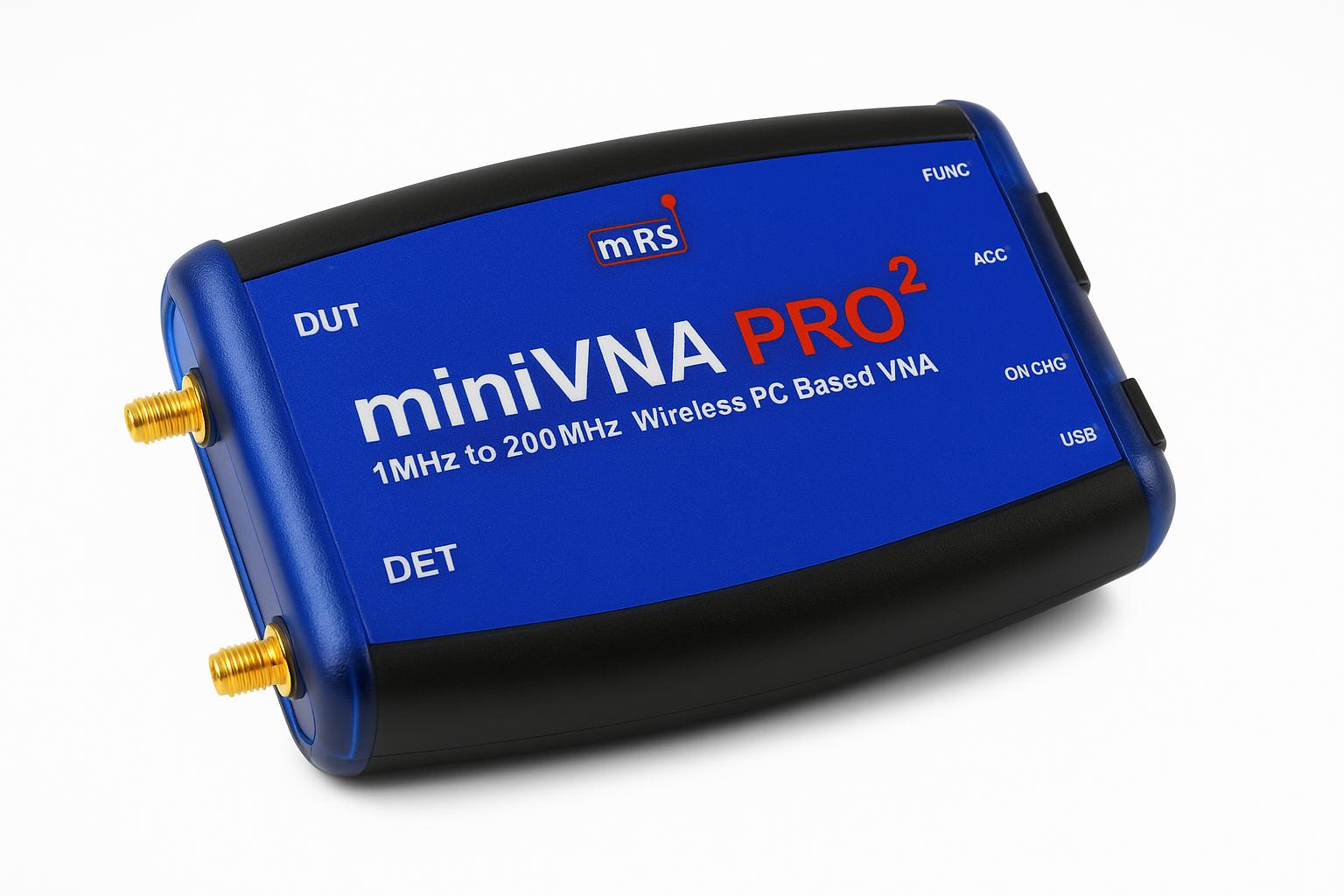

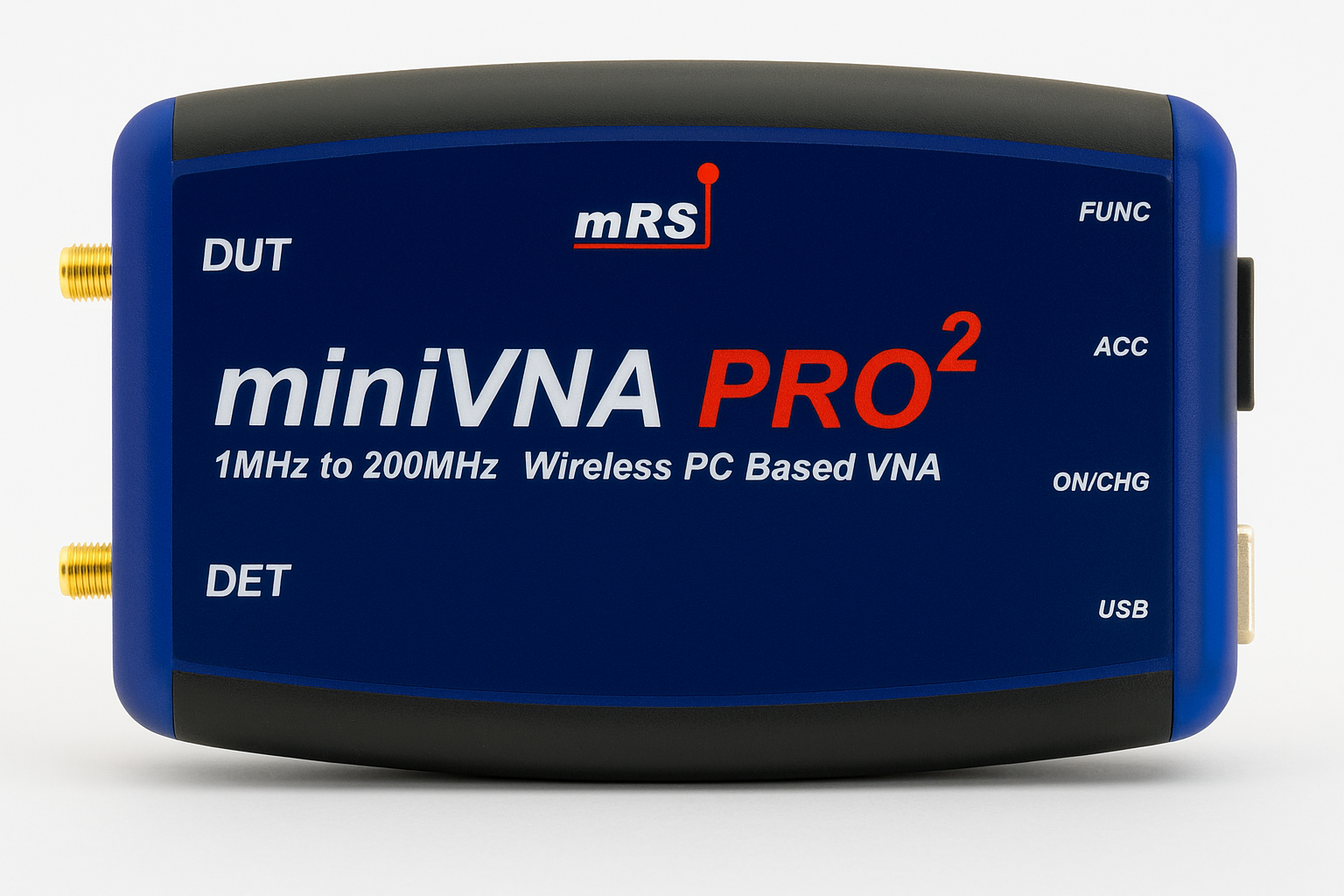

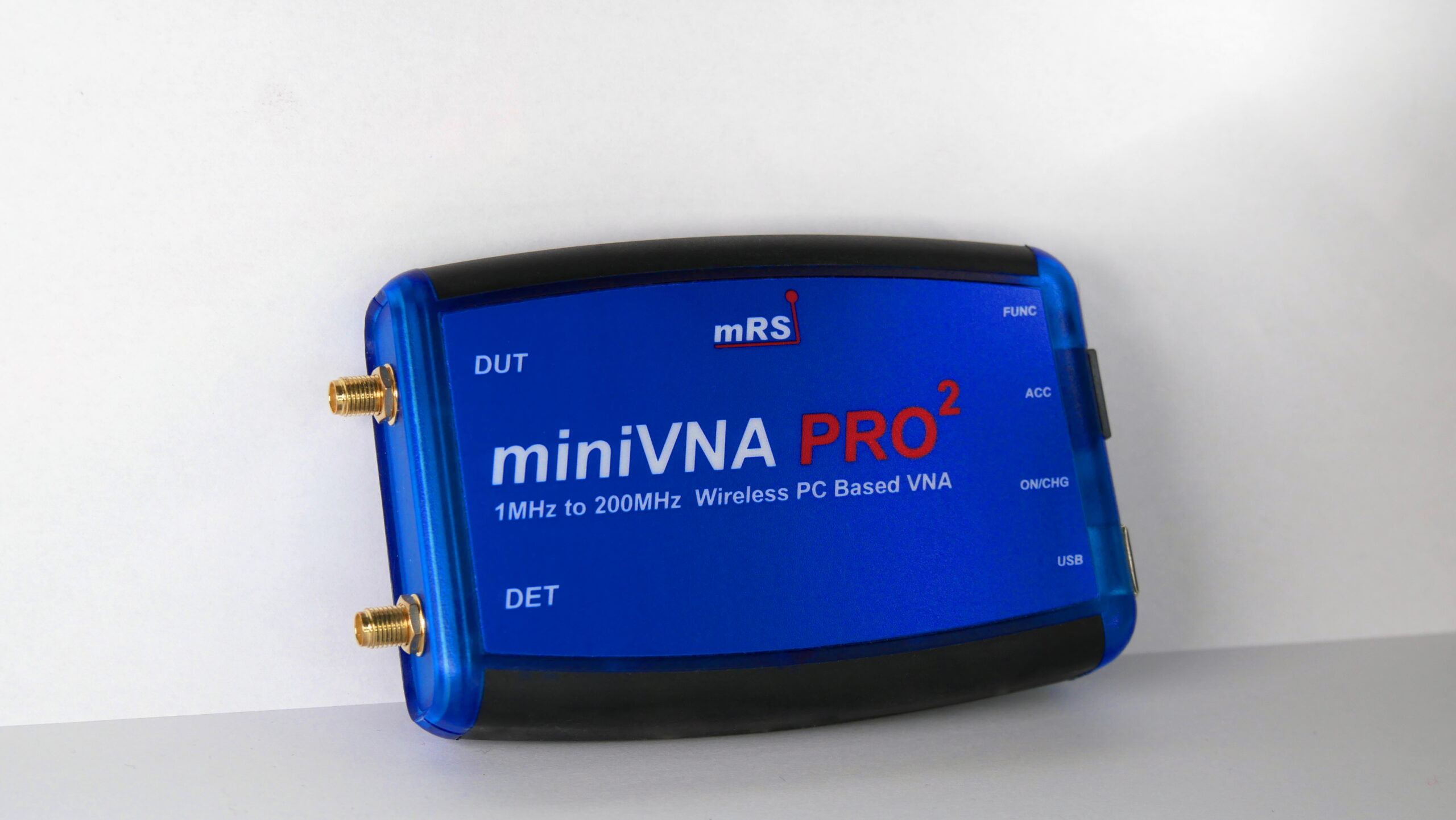

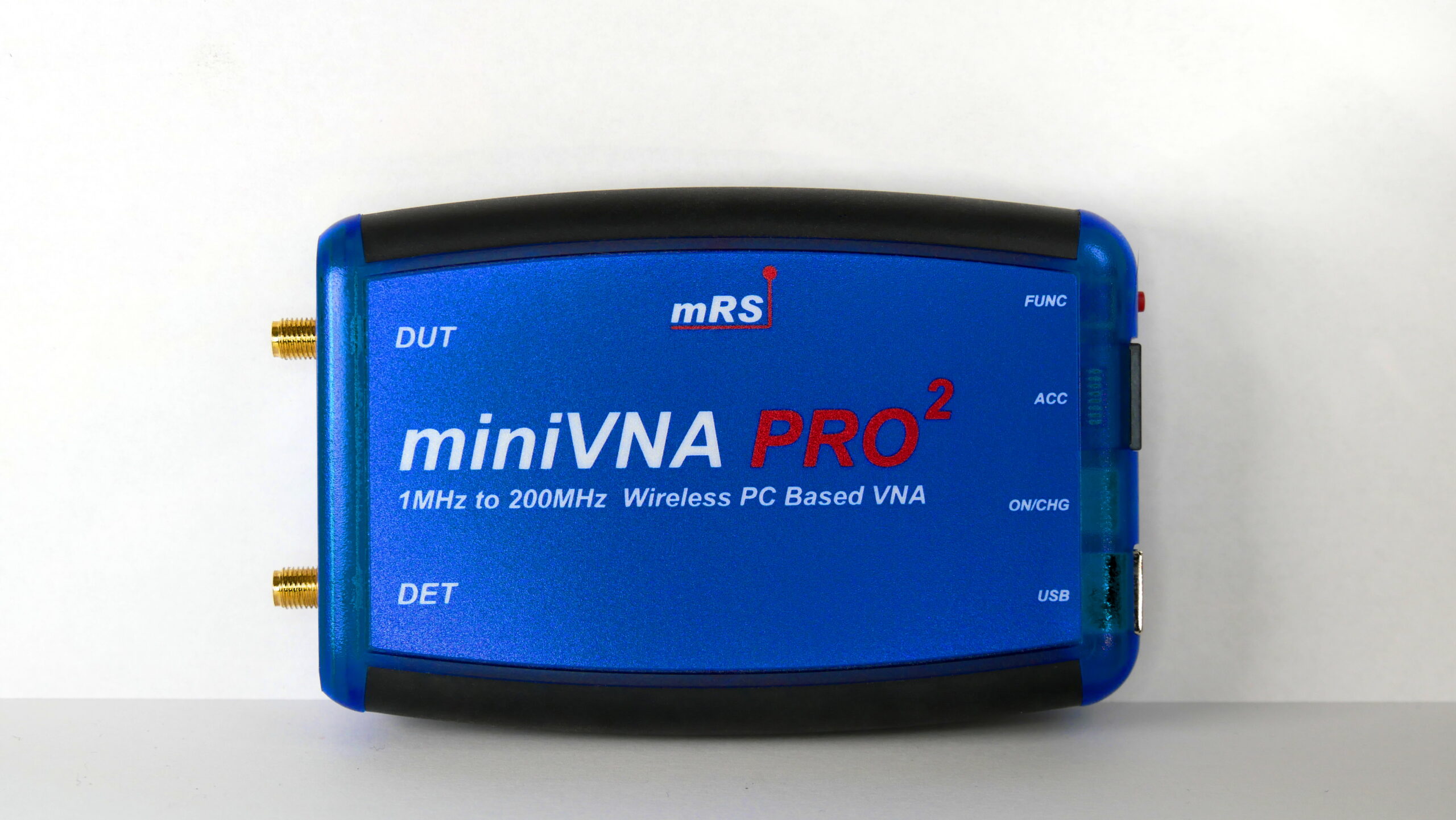

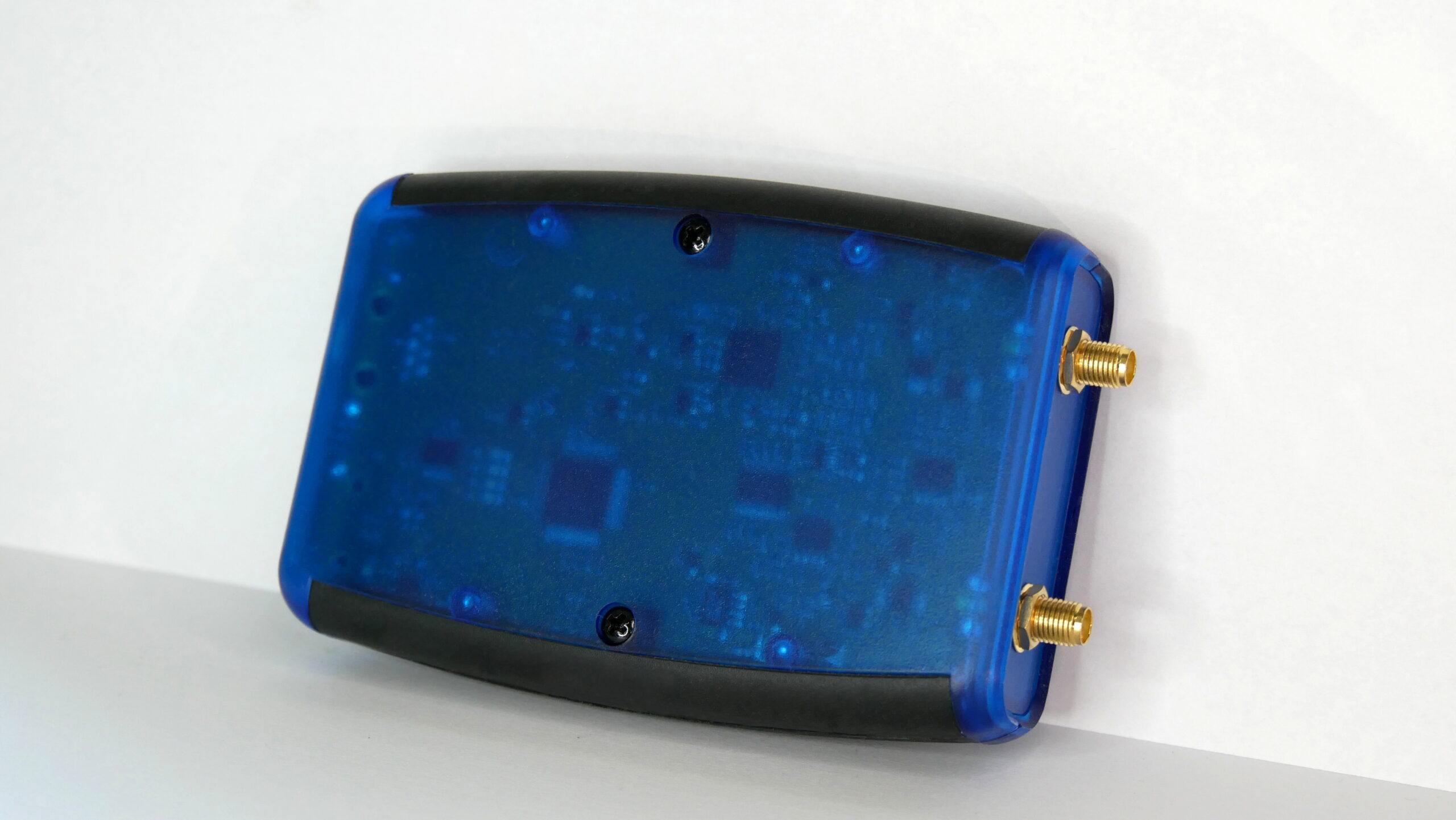

The miniVNA PRO 2, the big brother of the well-known miniVNA series, it is an extraordinary and unique handheld Vector Network Analyzer that makes available a multitude of features and capabilities which are perfect for checking antennas and RF circuits for radio hams and commercial users. Together with your PC/Laptop, you can add to your laboratory the further advantages of having this first-class VNA instrument.

This is the world’s first wireless analyzer capable of scanning and sending the data using an integrated Bluetooth module to a remote PC/Notebook/Tablet/Smartphone up to 100 meters from the miniVNA PRO’s location, as well as via USB.

Specifications
Frequency step 1Hz
Frequency range from 100 KHz to 230 MHz
Range of Z from 1 to 1000 ohm
RF Generator power output of 0 dBm (each)
Extended dynamic range: up to 100 dB in Transmission & 80 dB in Reflection
Built in Bluetooth Class 1 with external antenna on PCB for remote measurements up to 100mt
Supply is powered from USB (220 mA @ 3.6 V) or Internal Battery Li-ion with 1000 mA/h
Built-in battery charger (up to 400 mA/H)
Features
I/Q DDS Generator 2 channels AD9958 by Analog Devices
Two separate buffered RF output I/Q for SDR experiment and IMD test with independent 0-55 dB attenuator; Phase adjustment resolution of 1 degree.
Full phase measurement
Power save mode
Accessory port for future optional interfaces

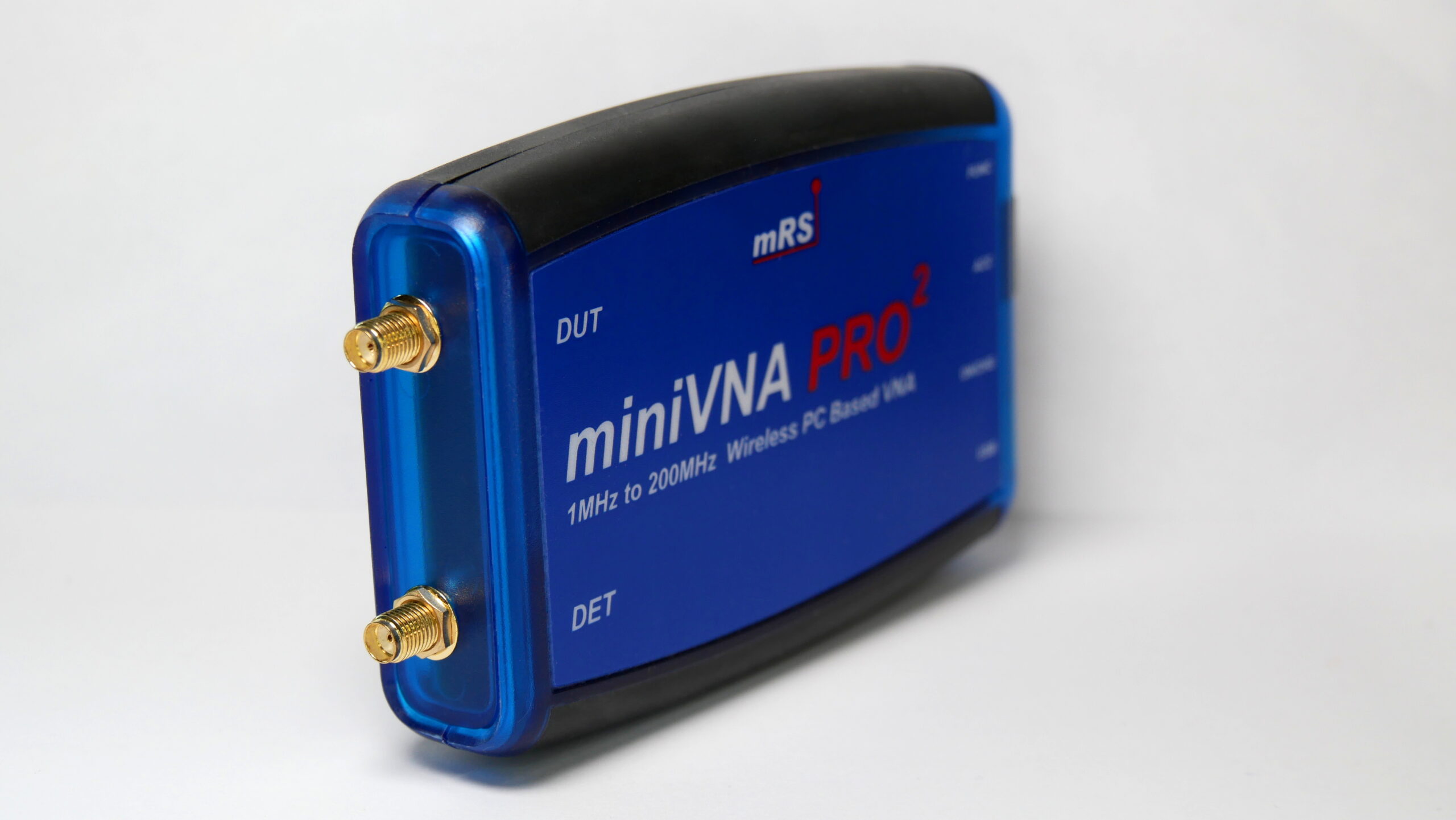

SMA connectors for better isolation
Calibration using open-short-load for accurate results
Measurements of motional crystal parameters, cable length, & more
Two ports VNA with S11 and S21; displayed and save results
Export data in several formats like JPEG, EXCEL, ZPLOT, S2P, PDF
Boot loader for future firmware upgrades
User friendly interface for PC Windows Linux and Mac
Integrated Smith chart in software
Android app – for management via Smartphone or Tablet
